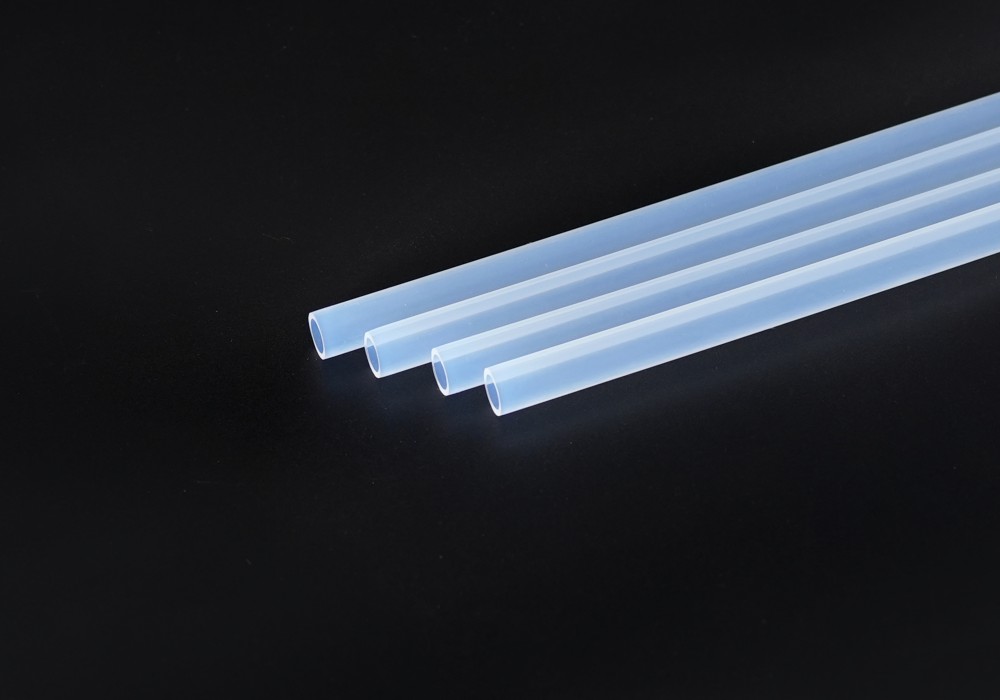

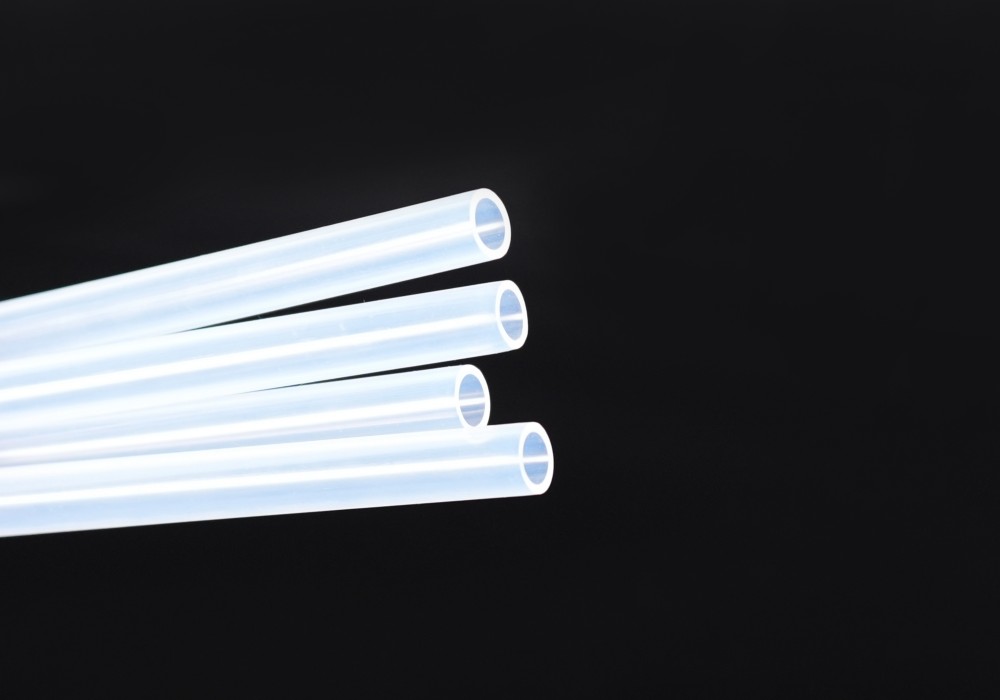

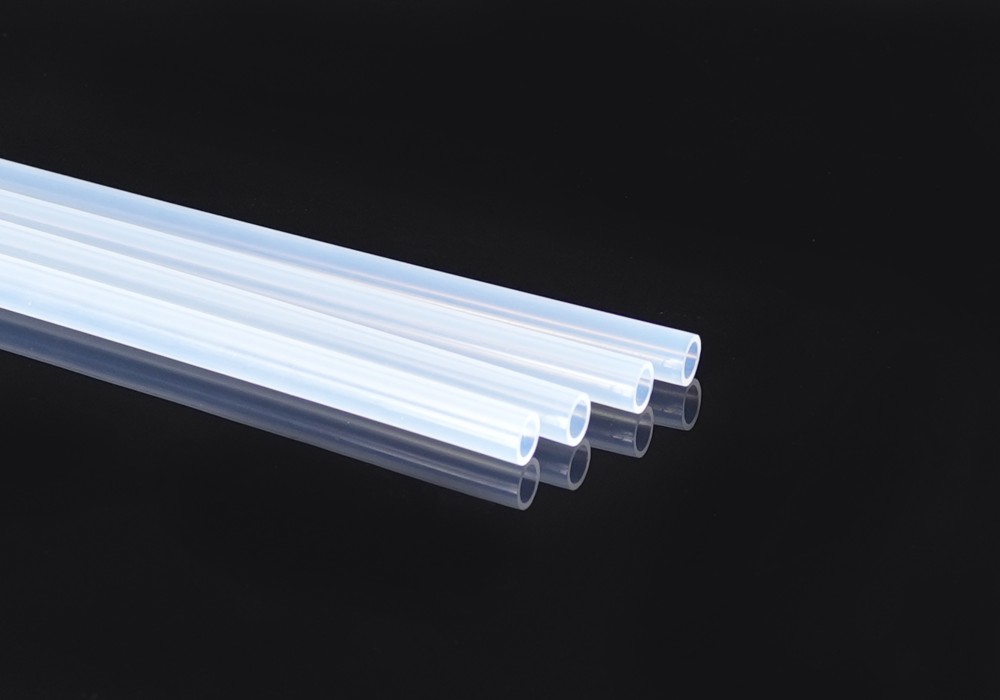

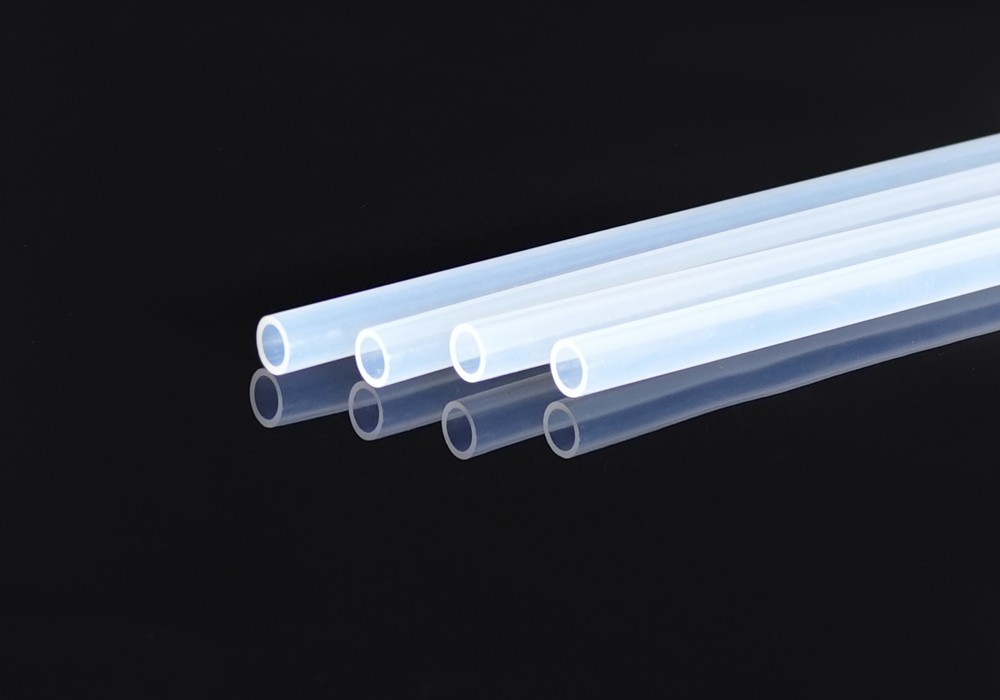

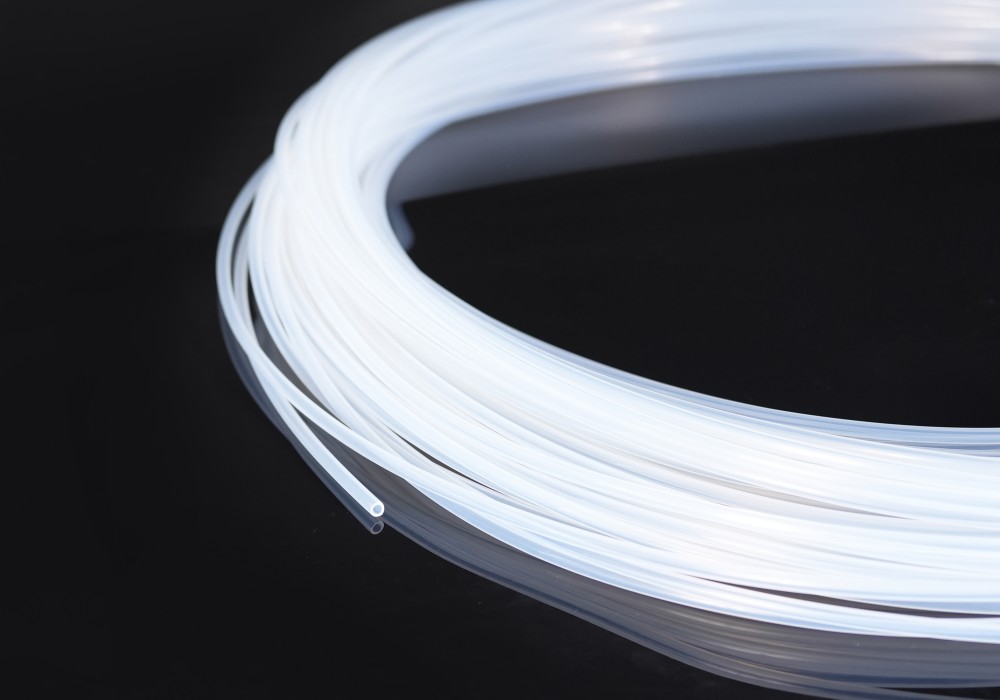

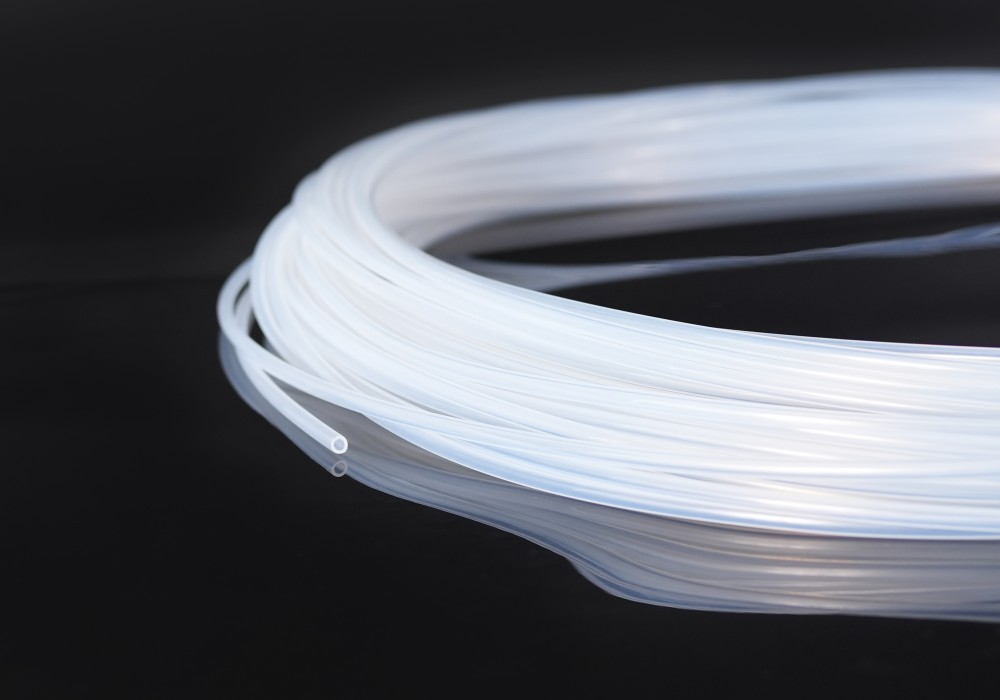

Extruded FEP tubing is manufactured by continuous extrusion and is designed for the transfer and protection of process media in industrial equipment.
The material provides excellent resistance to acids, alkalis, solvents, and many other aggressive chemicals. FEP tubing also features low moisture absorption, excellent non-stick properties, and good dielectric performance.
FEP tubing is widely used in chemical systems, laboratory equipment, electrical insulation applications, protective conduits, and other technical systems requiring chemical resistance and reliable performance.
Outer diameter, inner diameter, length, and wall thickness are available according to the standard size table or customer requirements. Custom specifications can also be manufactured upon request.
| No. | Product Name | Size (OD × ID), mm | Weight (kg/m) |
| 1 | Extruded FEP Tube | Φ1.6 x Φ0.8 | 0.0034 |
| 2 | Extruded FEP Tube | Φ3.2 x Φ1.6 | 0.0137 |
| 3 | Extruded FEP Tube | Φ4 x Φ2 | 0.0215 |
| 4 | Extruded FEP Tube | Φ4 x Φ3 | 0.0125 |
| 5 | Extruded FEP Tube | Φ5 x Φ3 | 0.0286 |
| 6 | Extruded FEP Tube | Φ5 x Φ4 | 0.0161 |
| 7 | Extruded FEP Tube | Φ6 x Φ4 | 0.0358 |
| 8 | Extruded FEP Tube | Φ6 x Φ5 | 0.0198 |
| 9 | Extruded FEP Tube | Φ8 x Φ6 | 0.0501 |
| 10 | Extruded FEP Tube | Φ8 x Φ5 | 0.07 |
| 11 | Extruded FEP Tube | Φ10 x Φ8 | 0.065 |
| 12 | Extruded FEP Tube | Φ12 x Φ10 | 0.0789 |
| 13 | Extruded FEP Tube | Φ12 x Φ9 | 0.113 |
| 14 | Extruded FEP Tube | Φ14 x Φ12 | 0.0932 |
| 15 | Extruded FEP Tube | Φ16 x Φ13 | 0.156 |
| 16 | Extruded FEP Tube | Φ16 x Φ14 | 0.108 |
| 17 | Extruded FEP Tube | Φ25 x Φ22 | 0.253 |
| 18 | Extruded FEP Tube | Φ25 x Φ23 | 0.172 |
| Note: Custom sizes can be manufactured upon request. | |||
